Solar LED Street Light-15W
  • Solar LED Street Light-15W
    Solar LED Street Light-15W

    Advantages

    Super Bright 1600LM

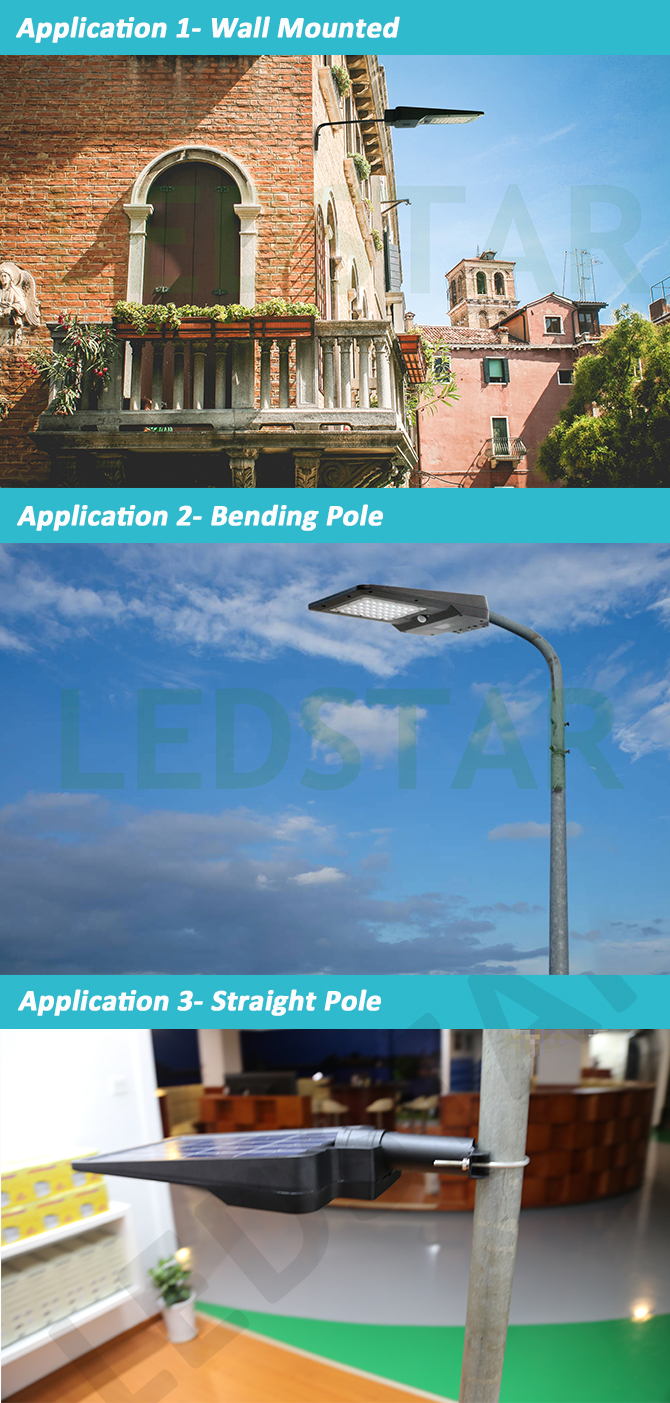

    2 Different Installations
    Ultra-thin Desgin
    IP65 Waterproof
    High Cost-effective Performance
    Wider Visible Area
    Auto-Adjusting Wroking Mode
    2 years warranty
  •  Specification of PATENT-NEW Solar LED Street Light

    Product Model LD-SSL-15W-Pro
    Solar Panel 9.5Wp. Poly-crystalline Silicon
    Charging Time 5-6 hours from sunlight per day
    Working Time continuously work for 4-5 nights
    LED Type SMD 2835
    Surface Color Black
    Sensing Range 8m
    Humidty 5~95%R.H
    Battery  7.4V/5400mAh (total 3.7V/10800mAh)
    Overall Dimension 413*232*58MM
    Material ABS, strong safe material
    Storage temperature -40~85°C
    Working temperature -20~55°C
    Quantity Assurance 12-24 months
  •



    1. Prepare lamp, accessories and tools well firstly.

    2. Insert the L-shaped bracket into the socket. (Figure 1)

    3. Use allen wrench to tighten the cap screws. (Figure 2)

    4. According to demanded installation height, drill 2 holes of φ8mm with a depth of at least 60mm on the wall,

        and fix the expansion screws into the holes. Then use a wrench to fix the light fixture. (Figure 3)







    1. Prepare lamp, accessories and tools well firstly.

    2. Open the cover of lamp socket. (Figure 1)

    3. Fix the lamp-post fixture onto the lamp socket (do not lock first). (Figure 2)

    4. Set up the lamp onto the lamp-post. (Figure 3)

    5. Adjust the lamp parallelly and lock the lamp-post fixture. (Figure 4)
